A camera on a production line can spot a cracked part in the blink of an eye. If that decision has to travel to a cloud server and back, the faulty part is already three stations down the belt. Cutting out that round trip is why more industrial AI is moving onto the machine itself, and it is the exact problem the FalconS1 Pro sets out to solve.
FalconS1 Pro is a compact edge computer aimed at factories and automation rigs rather than general tinkering. Instead of streaming sensor data to a remote server, it runs the AI model locally, so the line keeps making calls even when the internet drops. Two jobs show the idea off well. The first is visual quality inspection, where a camera flags defects as products pass by. The second is predictive maintenance, where the board watches vibration, temperature, pressure, current, and acoustic sensors to catch a failing motor before it seizes.
What is under the hood

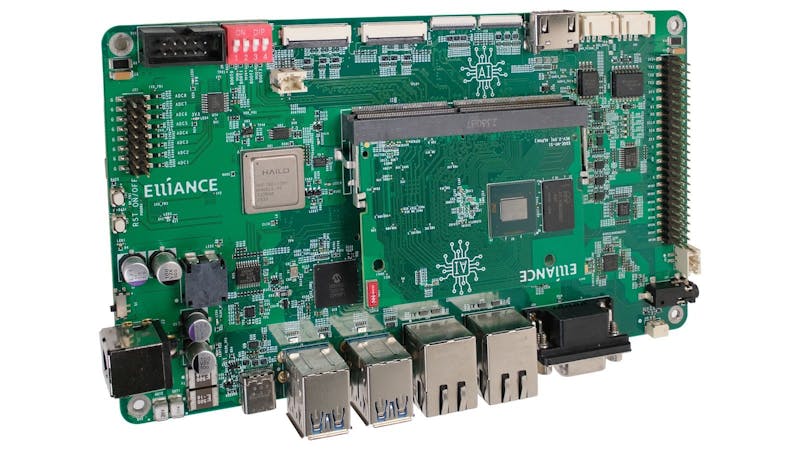

The board pairs an NXP i.MX8M Plus processor with a Hailo AI accelerator rated at up to 26 TOPS of inference, backed by 8 GB of RAM and 128 GB of onboard storage. For wiring into real equipment it exposes the interfaces embedded folks actually reach for: UART, SPI, I2C, GPIO, and CAN. On the software side you can boot a Yocto-based Linux image or Ubuntu, deploy apps in Docker containers, and build model pipelines with the low-code EdgeMind AI Studio if you would rather not hand-write every step.
How to get your hands on it
The team plans to publish open hardware schematics, a Yocto board support package, SDK components, and GitHub-hosted firmware and design files, so this is not a sealed black box. You can read the original write-up on Hackster and sign up on Crowd Supply for release news. Want to practice the same skills on a smaller budget first? A Raspberry Pi 5 with a Hailo-8 M.2 hat, or a Coral USB accelerator on almost any board, runs the same kind of on-device inference for a fraction of the cost and makes a solid capstone platform for testing quality-inspection or condition-monitoring ideas before you scale up.
Frequently Asked Questions
What AI accelerator does the FalconS1 Pro use?
It uses a Hailo AI accelerator rated at up to 26 TOPS, paired with an NXP i.MX8M Plus processor, so inference runs on the device instead of in the cloud.
Do I need cloud access to run it?
No. It processes workloads locally, so an inspection line or sensor rig keeps working even when internet connectivity drops, which is the main reason it targets factory floors.
What will I learn if I build a project like this?
You will pick up on-device machine learning, how to wire sensors over I2C, SPI, and CAN, and how to package models in Docker on embedded Linux. Those are exactly the skills that make a strong ECE thesis or capstone in condition monitoring.
